Universal Series Lightning Protection Boards

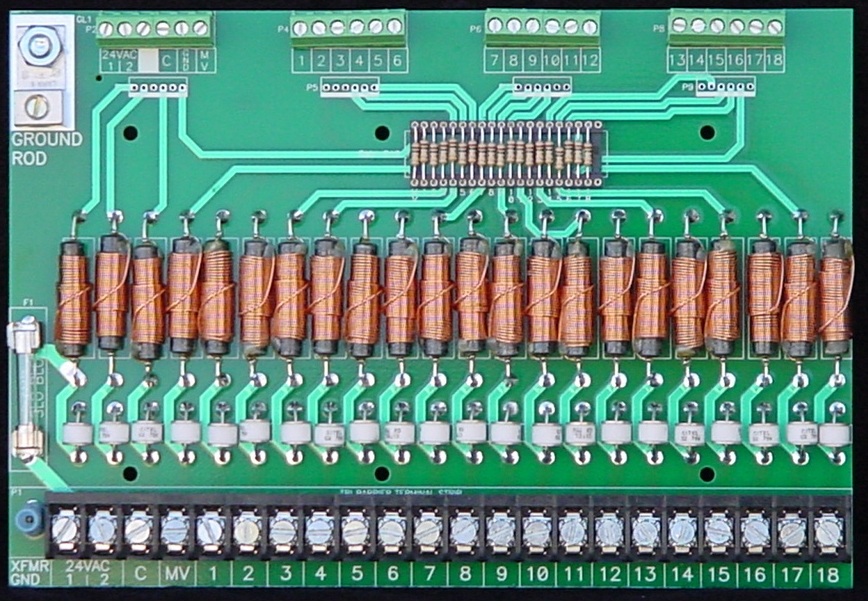

Universal 4-18 station lightning board, Click to show expanded view.

Universal 24-42 station lightning board, Click to show expanded view.

Uninversal Lightning Protection for 24vac Irrigation Controllers

  • Will work with most 24vac irrigation controllers
  • Sizes range from 4 to 42 stations
  • 3 levels of lightning protection for:
    • 24vac input power
    • Common output
    • Master valve or Pump start output
    • Valve outputs
  • Large grounding lug
  • Simple to install
  • Optional Nema 4 enclosures available as needed
    • ENC-10X8X4    4 - 18 Stations
    • ENC-16X14X7    24 - 42 Stations
  • Dimensions
    • 4-18 station board:  8.75" x 6.00"
    • 24-42 station board:  13.50" x 10.00"
  • Ordering information  (XX = controller size 04, 06, 08, 12, 16, 18, 24, 30, 36, 42)
    • ULB-XX
  • Pricing

Use the following links for Universal Installation Instructions and for Ground Rod Installation Instuctions.

PSLB, Click to view expanded image

Pump Start Lightning Protection Board

  • Protects 24vac pump starts
  • Two Channels
  • Three layers of protection
  • Demensions
  • Ordering Information: PSLB

Use the following links for PSLB Installation Instructions and Ground Rod Installation Instructions
